Introduction

In industrial automation and motor control systems, managing the operation of electric motors safely and efficiently is crucial. One of the simplest and most widely used methods for controlling motors—especially smaller ones—is the Direct-On-Line (DOL) Starter. Often, these starters are operated via a Local Control Station (LCS) for user-friendly and localized control.

What is a Local Control Station (LCS)?

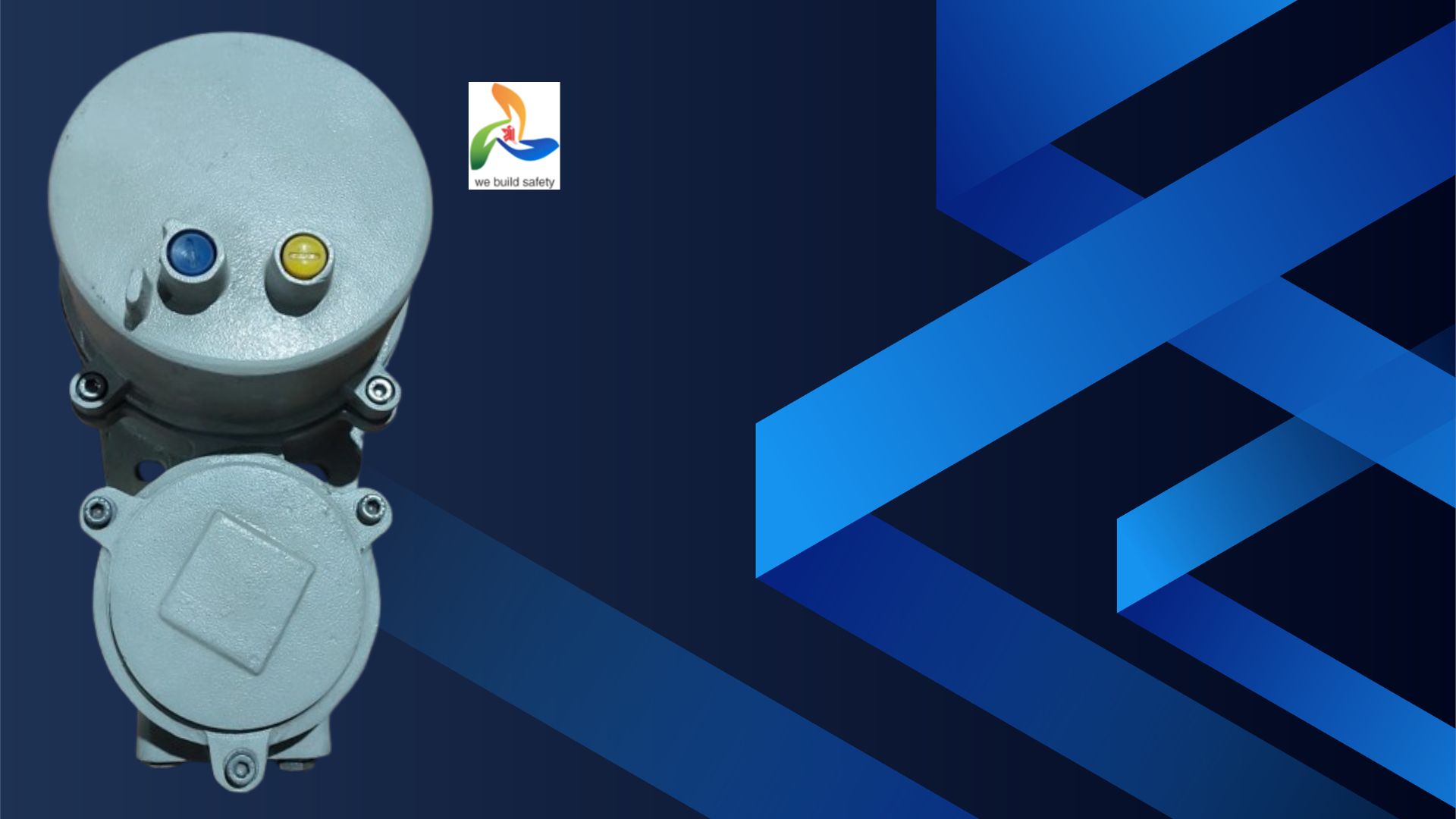

A Local Control Station (LCS) combined with a Direct-On-Line (DOL) starter is a critical component in industrial electrical systems, particularly in motor control applications. This setup is widely used across various industries, due to its simplicity, reliability, and ease of operation. The Local Control Station serves as a user-friendly interface that allows operators to manually control motors and machinery from a location close to the equipment itself, eliminating the need to rely solely on remote control from centralized panels. Typically, a Local Control Station includes START and STOP push buttons, selector switches, emergency stop (E-stop) buttons, and sometimes pilot lamps for status indication, all mounted within a robust enclosure. These enclosures are often designed to be weatherproof, dustproof, or even flameproof to withstand harsh industrial environments and ensure safe and reliable operation in hazardous locations.

What is a DOL Starter?

The DOL starter, which forms the core motor control component within the Local Control Station, is one of the most basic and cost-effective methods for starting electric motors. It operates by connecting the motor terminals directly to the power supply, applying full line voltage to the motor windings from the moment it starts. This results in a high starting torque, which is advantageous for many motor-driven applications such as pumps, compressors, conveyors, and fans. A standard DOL starter includes a contactor to make or break the power circuit and an overload relay to provide thermal protection against motor overloading and overheating. Despite its simplicity, the DOL starter is highly effective for motors rated up to approximately 5 to 10 HP (depending on the voltage and local regulations), as motors above this range may require more advanced starting methods to limit high inrush currents.

Applications of Local Control Station and DOL Starters

Integrating a DOL starter within a Local Control Station brings several operational benefits. First and foremost, it provides immediate and manual access to motor controls, which is vital in processes where timely intervention is necessary. This setup increases safety by enabling emergency shutdown and isolation of the equipment during maintenance or fault conditions. The LCS can be customized with features such as lockable switches, illuminated indicators to show motor status (ON/OFF/FAULT), and even monitoring devices for current, voltage, or temperature, depending on the complexity of the system. Furthermore, Local Control Stations can be built with interlocking mechanisms to prevent unsafe operations or to ensure that motors operate in a defined sequence.

From a maintenance and troubleshooting perspective, Local Control Stations with DOL starters simplify the workflow for electricians and technicians. Since the controls are localized, any faults or issues can be identified and addressed on-site, reducing downtime and improving overall productivity. In hazardous environments such as oil refineries or chemical plants, explosion-proof or flameproof versions of these stations are used to comply with safety standards like ATEX, IECEx, or IS/IEC certifications. These specialized enclosures prevent the ignition of flammable gases or dust by containing any internal explosions within the enclosure.

Conclusion

In modern industrial systems, while advanced motor control technologies like Variable Frequency Drives (VFDs) and Soft Starters are becoming more prevalent, the DOL starter remains a highly relevant and practical solution for many applications due to its ruggedness, affordability, and ease of use. When paired with a well-designed Local Control Station, it provides a comprehensive motor control solution that meets both operational and safety requirements. In conclusion, the Local Control Station with a DOL starter is a time-tested configuration that continues to serve as the backbone of motor control in various sectors, offering simplicity, direct control, and reliable performance in demanding industrial environments.

​
